Quick Picks: Our Top Recommendations
After testing and researching the top garage flooring products, these are our best picks across every category and budget:
Best Overall
Rust-Oleum RockSolid Polycuramine
Best Overall Coating
$200/kit
Check Price
Best Tiles
RaceDeck Diamond
Best Interlocking Tiles
$5.50/sq ft
Check Price
Best Epoxy Kit
Armor Granite Garage Epoxy
Best Epoxy Kit
$200/kit
Check Price
Best Mat
G-Floor Roll-Out Vinyl
Best Roll-Out Mat
$3.50/sq ft
Check Price
Best Budget
NewAge Versaroll PVC
Best Budget Roll
$2.50/sq ft
Check Price
Product Comparison Table
Compare the key specifications of our top-rated garage flooring options at a glance:
| Product |
Type |
Coverage |
Durability |
Prep Required |
Hot Tire Safe |
Price |
Detailed Reviews

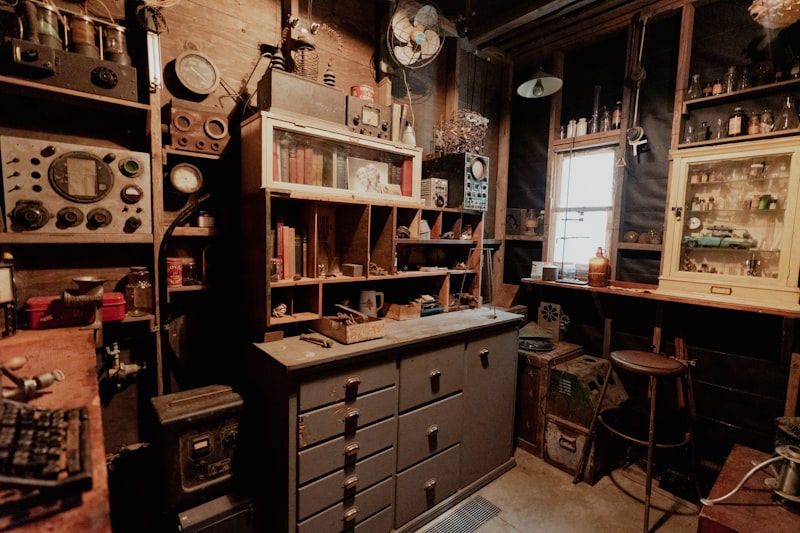

Photo via Unsplash
Garage Flooring Buying Guide
Choosing the right garage flooring involves balancing budget, durability needs, installation complexity, and the current condition of your concrete slab. Here is what to consider:
Flooring Types Compared
Epoxy & Polycuramine Coatings
Chemical coatings that bond directly to concrete. Polycuramine (Rust-Oleum RockSolid) is 20x stronger than standard epoxy. Requires thorough surface prep. Longest lasting option when properly applied — 10 to 20 years. Not reversible once applied.
Interlocking Tiles
PVC or polypropylene tiles that snap together and lay loose over concrete. No adhesive, no prep, fully reversible. Higher upfront cost but individual tiles can be replaced. Best for workshops with heavy rolling tool loads.
Roll-Out Mats
Solid PVC sheets that roll out and lay flat. Fastest installation — minutes, not days. No prep required, fully reversible. Ideal for renters or anyone who wants flexibility. Seams between rolls are the only downside.
Surface Preparation
Surface prep is the most important factor in coating longevity. Skipping this step is the primary reason DIY epoxy floors fail within a year:
- Degreasing: Remove all oil and grease stains with a concrete degreaser before any other step
- Acid etching: Opens concrete pores for better adhesion; use muriatic or phosphoric acid solution
- Diamond grinding: Mechanical method that creates a superior bonding profile; best for 100% solids systems
- Moisture testing: Tape plastic sheeting to the floor for 24 hours; condensation indicates moisture vapor issues
Pro Tip
If your concrete was previously sealed or painted, mechanical grinding is the only reliable way to achieve proper adhesion. Acid etching alone will not adequately cut through old sealers.
Hot Tire Pickup — A Critical Consideration
Hot tire pickup is the most common failure mode for DIY garage coatings. When tires heat up during driving and park on a coated floor, the coating can bond to the tire and peel when you drive away. Avoid this by choosing:
- 100% solids epoxy or polycuramine: Specifically engineered to resist hot tire contact
- Water-based epoxy kits: These nearly always fail with hot tire contact — avoid for parking areas
- Interlocking tiles: All quality tiles are hot tire safe regardless of brand
- Roll-out vinyl: Quality PVC mats handle hot tire contact well without peeling
Cost Per Square Foot Analysis
For a standard two-car garage of 440 square feet:
- Budget epoxy kit: $0.50-0.75/sq ft — $220-330 total, but shorter lifespan
- Polycuramine coating: $0.75-1.00/sq ft — $330-440 total, 10-15+ year lifespan
- Roll-out vinyl mat: $2.50-4.00/sq ft — $1,100-1,760 total, removable
- Interlocking tiles: $2.50-6.00/sq ft — $1,100-2,640 total, longest lifespan
- Pro-grade broadcast system: $1.50-2.00/sq ft DIY — $660-880 total, 20+ year lifespan
Climate and Moisture Considerations
Geographic location dramatically impacts which flooring type performs best:
- Cold climates: Freeze-thaw cycles stress coating adhesion; choose 100% solids or tiles over water-based epoxy
- High humidity regions: Test for moisture vapor transmission before applying coatings; consider tiles or mats instead
- Below-grade garages: Coatings are risky with high groundwater; tiles or mats are safer choices
- Direct sun exposure: UV-stable topcoats prevent yellowing and chalking in sun-exposed garages
Frequently Asked Questions
