Quick Picks: Our Top Recommendations
Here are the best workshop air filtration systems across every category and shop size:
Best Overall
JET AFS-1000B
Ceiling-Mount Air Filtration
$450
Check Price
Best Budget
WEN 3410
Budget Air Filtration
$200
Check Price
Best Premium
Powermatic PM1200
Premium Air Filtration
$900
Check Price
Best Large Shop
JET AFS-2000
High-Capacity Filtration
$800
Check Price
Best Ultra-Budget
VEVOR Hanging Air Filter
Entry-Level Filtration
$150
Check Price
Product Comparison Table
Compare key specifications across all 7 air filtration systems:
| Model |
Max CFM |
Room Size |
Filter Stages |
Noise (dB) |
Remote |
Price |
Detailed Reviews

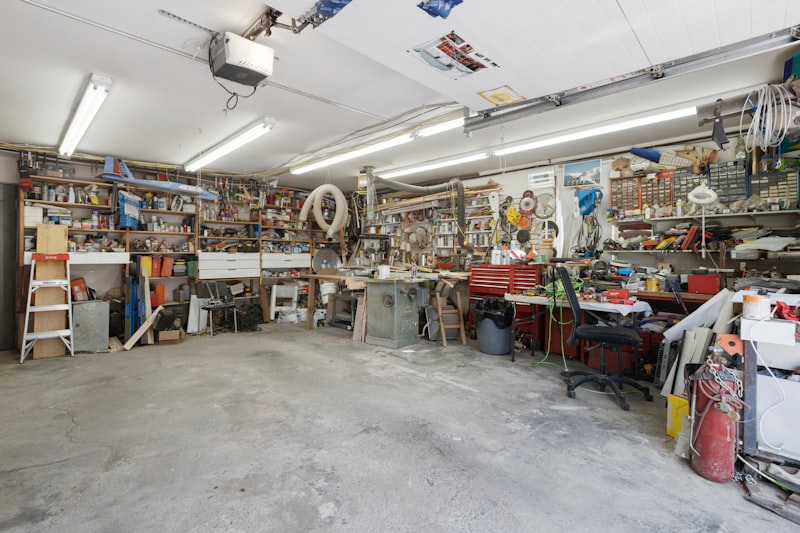

Photo via Unsplash
Workshop Air Filtration Buying Guide
An air filtration system is not optional safety equipment for a serious woodworking shop. Here is what to evaluate when choosing one:
CFM and Shop Size Matching
Small Shops (Under 300 sq ft)
A 400-600 CFM unit provides adequate filtration for a single-car garage shop or small dedicated workspace. Units in the 400 CFM range like the WEN 3410 achieve the recommended 6-10 air changes per hour in small spaces at lower speeds.
Medium Shops (300-600 sq ft)
The JET AFS-1000B at 1,044 CFM maximum is the sweet spot for two-car garage shops. Running on medium speed provides quiet continuous filtration while you work without drowning out conversations or machine sounds.
Large Shops (600+ sq ft)
High-volume shops need 1,500+ CFM to achieve adequate air changes per hour. The JET AFS-2000 at 2,000 CFM maximum handles large professional shops. Consider two smaller units in large shops to improve air circulation patterns.
Filter Stages and Micron Ratings
More filter stages means finer particle capture. Understanding what each stage does helps you choose the right system:
- Stage 1 - Outer bag filter (25-30 micron): Captures large wood chips and dust particles. Washable or cleanable. Think of this as the pre-filter that extends inner filter life.
- Stage 2 - Inner cartridge filter (1-5 micron): Captures the fine dust that passes through the bag filter. This stage handles the particles most harmful to lung health. Replace every 6-12 months.
- Stage 3 - HEPA filter (0.3 micron): Premium units add a final HEPA stage capturing 99.97% of particles down to 0.3 microns. Essential for finishing rooms and spray applications where extremely fine overspray is present.
Dust Collection CFM Calculator
Calculate the exact CFM you need for your shop size and determine if one unit covers your space.
Mounting Options and Placement
Proper placement maximizes the effectiveness of any air filtration system:
- Ceiling mount: Ideal location for maximum air circulation. Hang from joists with chains or straps included with most units. Position near the center of the shop pointing across primary work areas.
- Wall mount: Some units work horizontally mounted on walls. Less effective than ceiling mounting for fine dust capture but useful when ceiling height is limited.
- Portable floor models: Some units like the Shop Fox W1830 operate on the floor. Less effective than ceiling mounting but easier to reposition for different work areas.
- Multiple units: In shops over 600 square feet or with unusual layouts, two smaller units outperform a single large unit by improving circulation in dead-air corners.
Pro Tip
Run your air filtration system for 30-60 minutes after finishing work in the shop. Fine particles that were stirred up during machining take time to settle or be captured. A timer feature makes this automatic.
Remote Controls and Timers
Convenience features significantly impact how consistently you use the system:
- Remote control: Allows speed adjustment without climbing a ladder. Essential when the unit is ceiling-mounted. Most mid-range and premium units include a remote.
- Programmable timer: Automatically shuts the unit off after 2-4 hours. Useful for running the system after you leave the shop to continue air scrubbing.
- Auto mode: Some premium units sense air quality and automatically adjust speed. Reduces noise during low-dust periods and ramps up during heavy machining.
